Novagrani granite wall finish is an innovative, ready-mixed and ready-to-spray pliolite-based polymer paint consisting of one or more colour flakes to give a granite-like effect in one spray application.

Novagrani has been developed to combine an elegant granite effect with extremely easy application at a low cost per sq. meter.

Novagrani offers a wide range of patterns covering the most popular type of granite stones available world-wide.

SPECIFICATION FOR NOVAGRANI GRANITE WALL FINISH
The coating system consists of primer/ sealer, surface levelling, Novagrani base coat, Novagrani flek coat and clear top coat of two pack polyurethane.

1. PRIMER/ SEALER

A) Concrete, cement plaster, asbestos etc.- One or two coats by brush, Novaseal waterproof sealer.
B) Wood, plywood and other wood base products.- One coat by brush, commercial wood primer.
C) Gypsum board.- No primer sealer required.
D) Metal surface.- One coat by brush, Redoxide Zinc Chromate primer.

2. SURFACE LEVELLING
One or two coats of Novafill with putti knife.

3. NOVAGRANI BASE COAT
An essential treatment prior to the application of Novagrani flek coat. Two coats by brush. Dilute with turpentine for easy application.

4. NOVAGRANI FLEK COAT
Spray using the Cross-lap method. One coat Novagrani flek coat.

5. P.U. CLEAR COAT
After one week of drying, apply two coats of non-yellowing polyurethane clear coat by roller or brush.

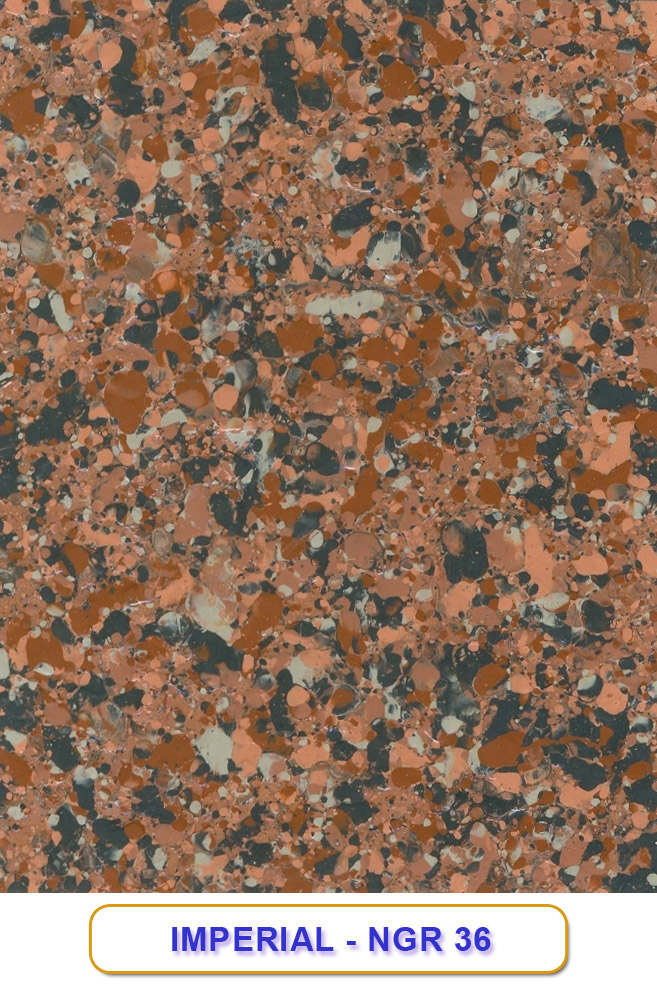

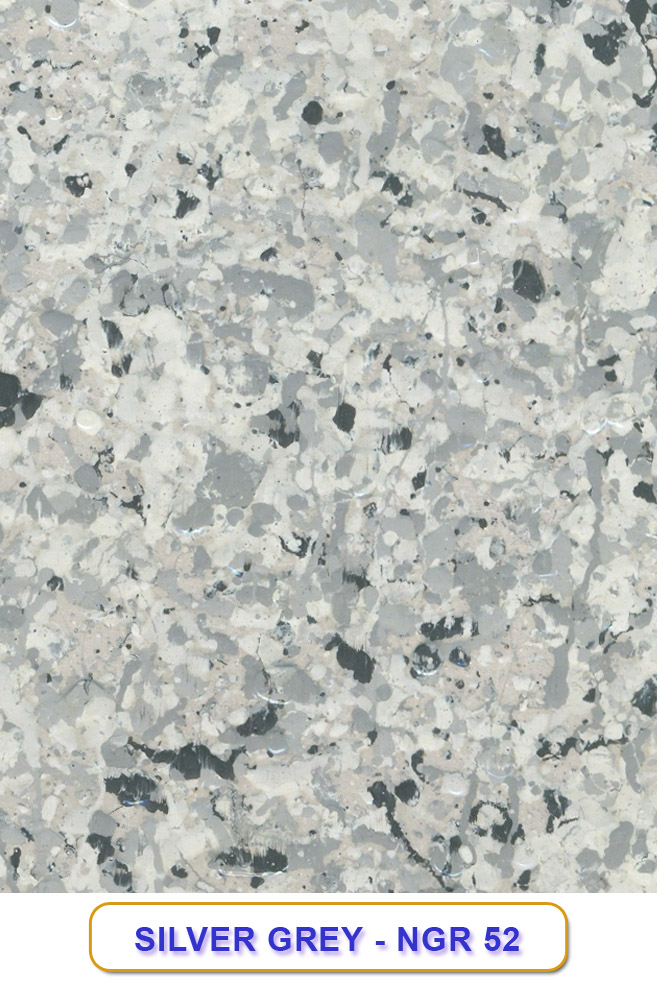

IMPERIAL- NGR 36		SILVER GREY- NGR 52

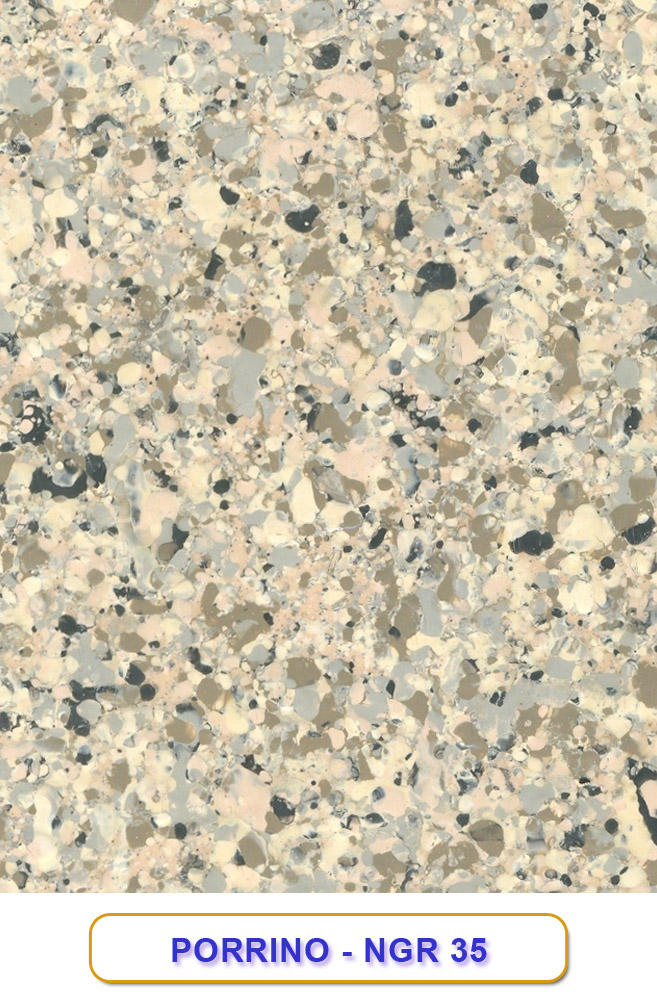

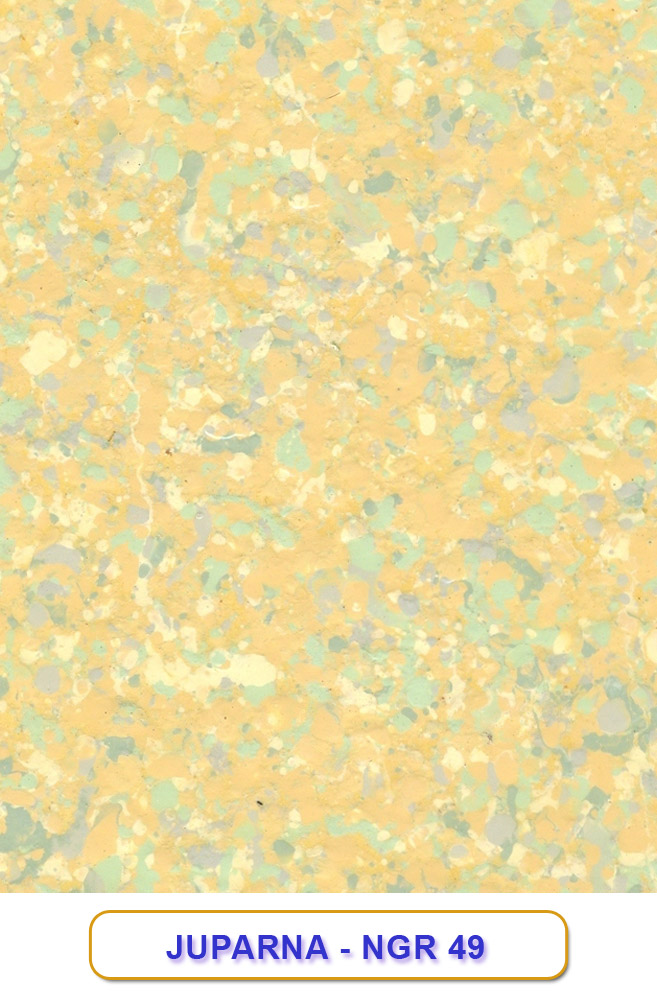

PORRINO- NGR 35		JUPARNA- NGR 49

THEORETICAL SPREADING RATE

NOVAGRANI BASE COAT : 3.5 to 4 sq. meters in two coats per litre.
NOVAGRANI FLEK COAT : 3 to 3.5 sq. meters per litre.
USES : Suitable for interior and exterior walls where hard-wearing, attractive decoration is required.

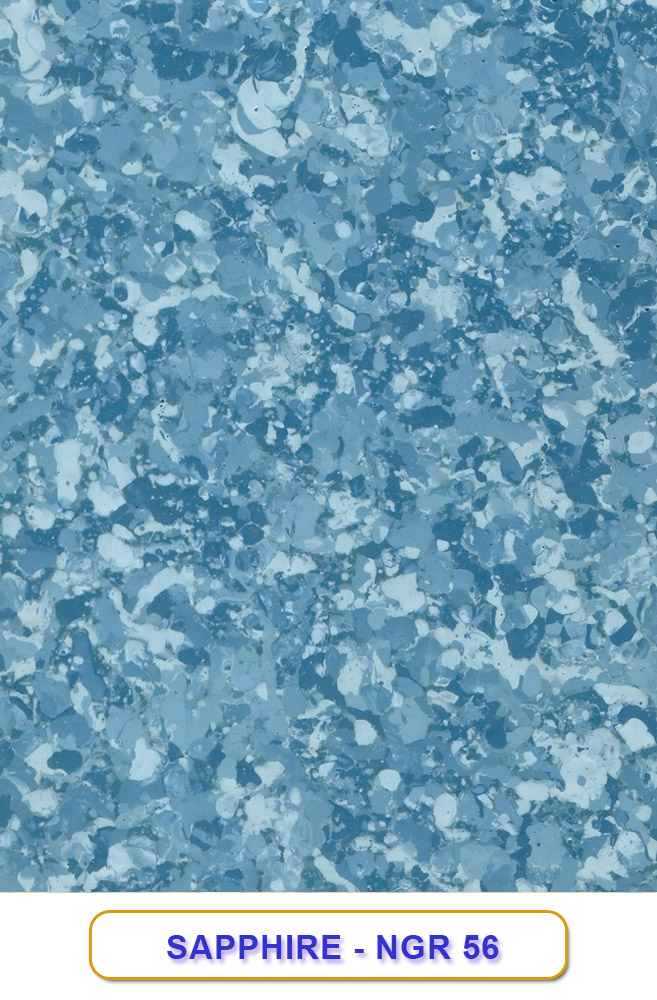

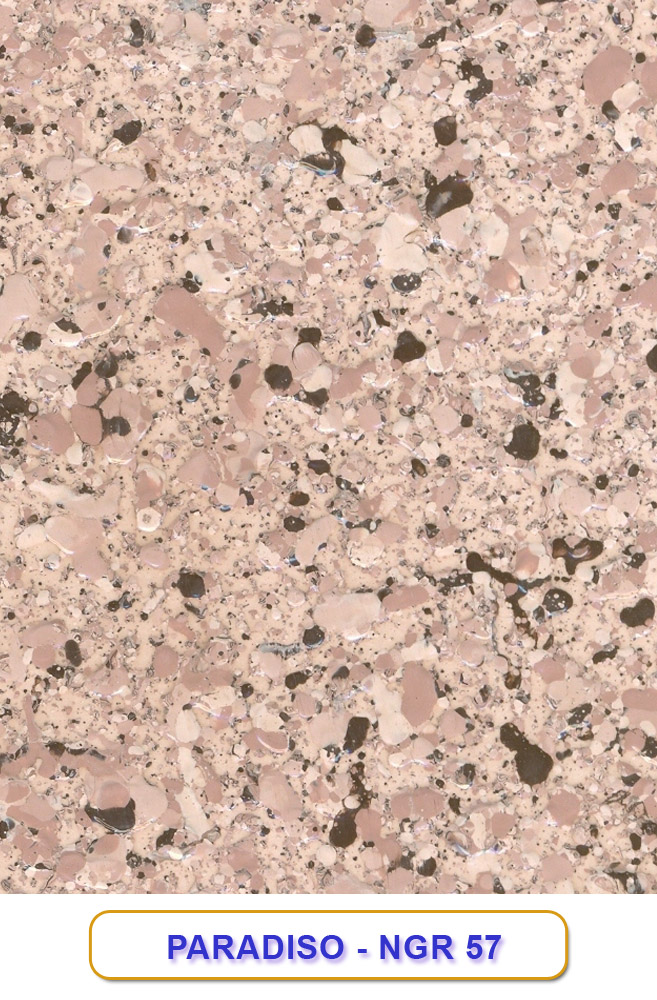

SAPPHIRE- NGR 56		PARADISO- NGR 57

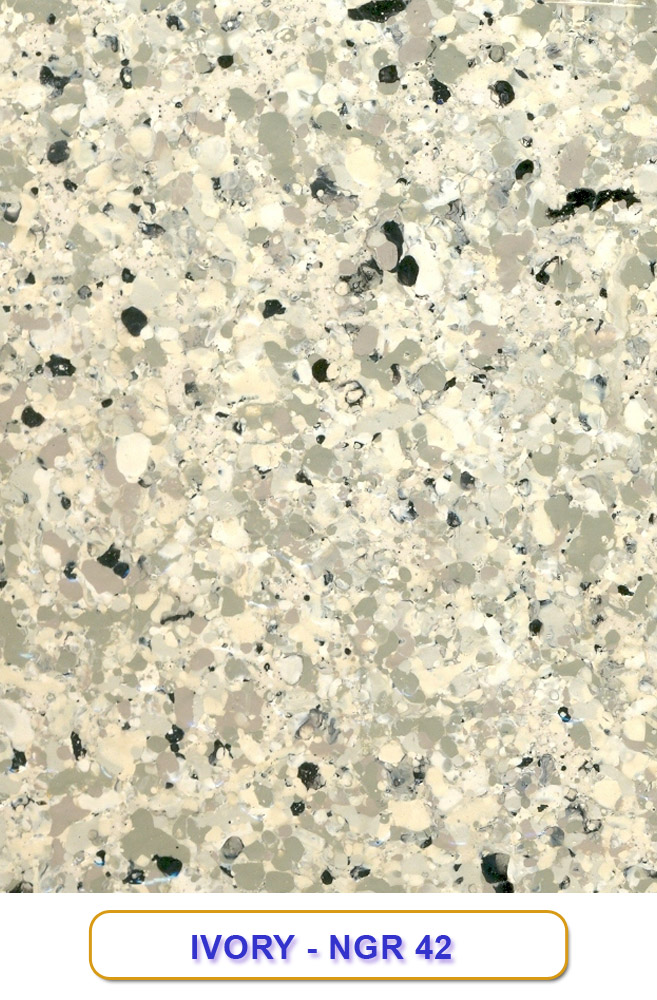

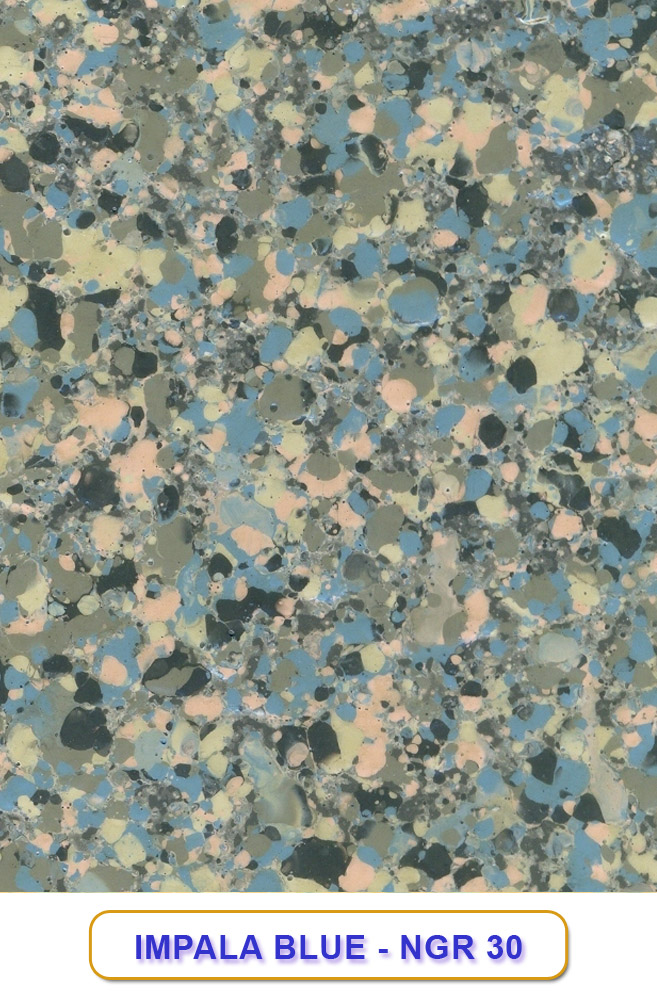

IVORY- NGR 42		IMPALA BLUE- NGR 30



APPLICATION OF NOVAGRANI FLEK COAT: APPLIED BY SPRAY ONLY.

SPRAY EQUIPMENT: Best results are obtained with medium/ large nozzle set-ups.
A pressure pot or pressure feed cup gun fitted with an internal mix cap is recommended.

PRESSURE: A pot pressure of 0.9 to 2 kg/cm2 and air pressure at gun of 1.4 to 2 kg/cm2 are recommended.
To ensure continuity of pattern, pressure should not be allowed to fluctuate during application.

VENTILATION: Adequate ventilation is essential and windows should be opened before and during spraying and throughout the drying period.

SPRAYING TECHNIQUES: Spray using the Cross-lap method of application. Always hold the gun at right angles to the surface. Work across or down the surface moving the whole arm. Do not spray by flexing the wrist. For best coverage (and to ensure the correct spreading rate) the first lap should be a mist or guide coat, immediately followed on the other lap with a normal spray coat.

To ensure uniform and adequate thickness of coating it is essential that the recommended spreading rate is not exceeded. Adjust gun settings to achieve desired patterns.

CLEANING: When changing colours, clear gun and pressure lines by rinsing with water. If left overnight, clean with turpentine.

DRYING TIME: Surface dry in 4 to 6 hours. Hard dry in 24 hours. Complete dry in 1 week.
Humid conditions may retard the initial dry. Do not apply Novagrani Flek Coat when humidity is high enough to cause surface condensation or when the temperature falls below 5 degrees C during the drying period.

PRECAUTIONS: Adequate ventilation is essential during spraying and for 2 hours after completion. Eye protectors and mask should be worn during application. Splashes on skin to be removed with a recognised hand cleaner. Keep away from children. Store and use away from heat and flame. Protect from frost.

Flash point above 32 degrees C (90 degrees F) Abel closed cup method.

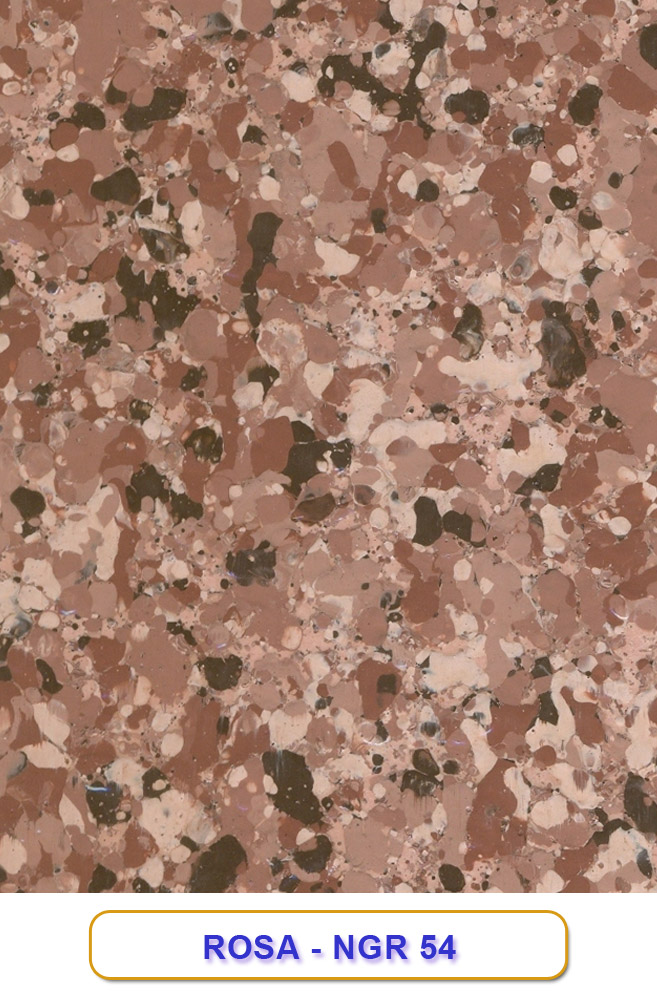

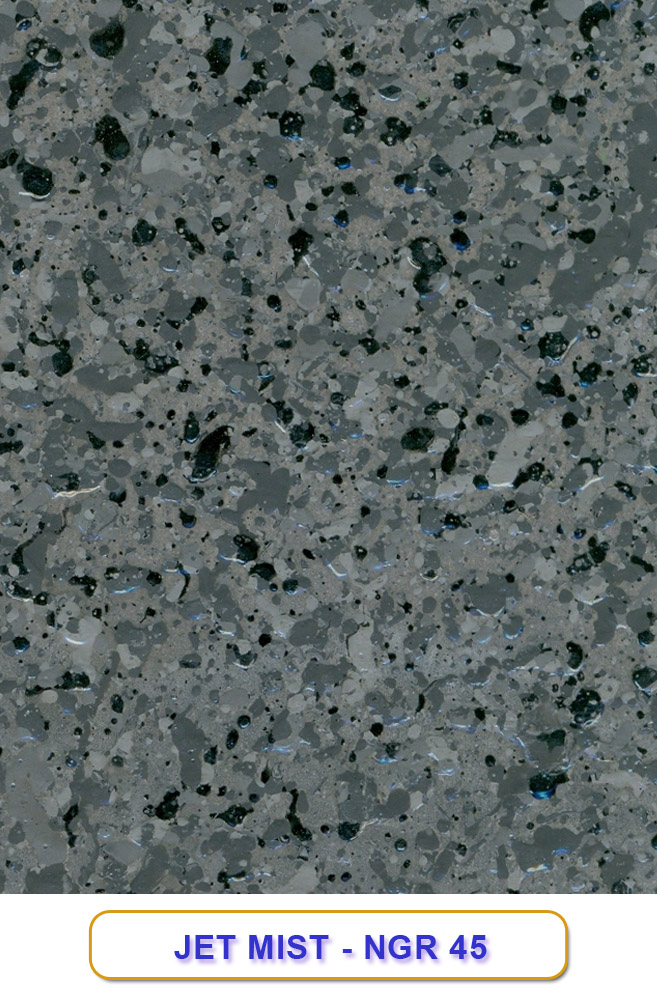

ROSA- NGR 54		JET MIST- NGR 45

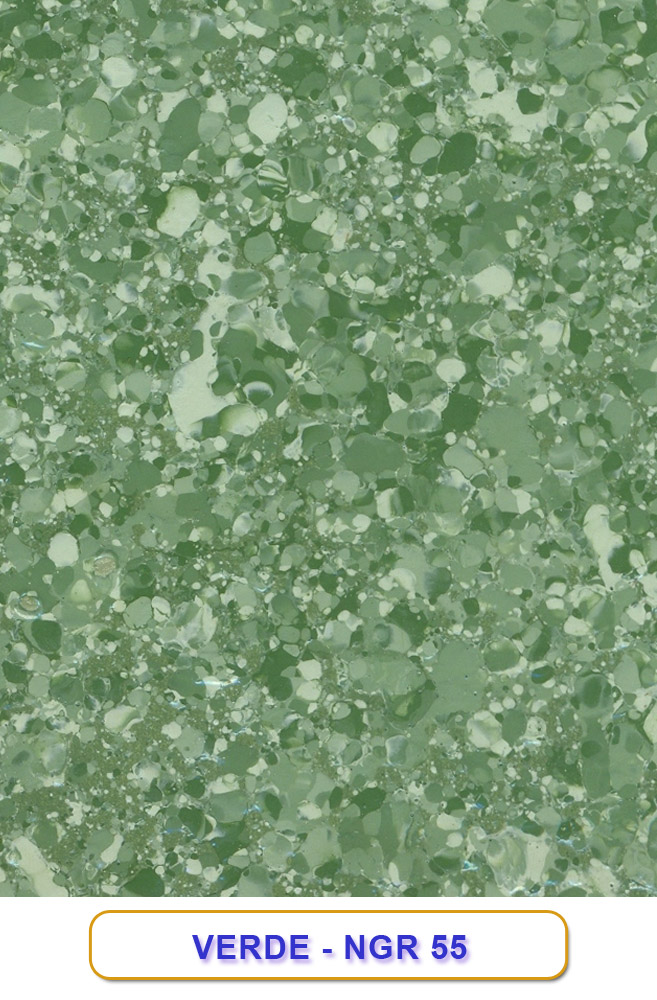

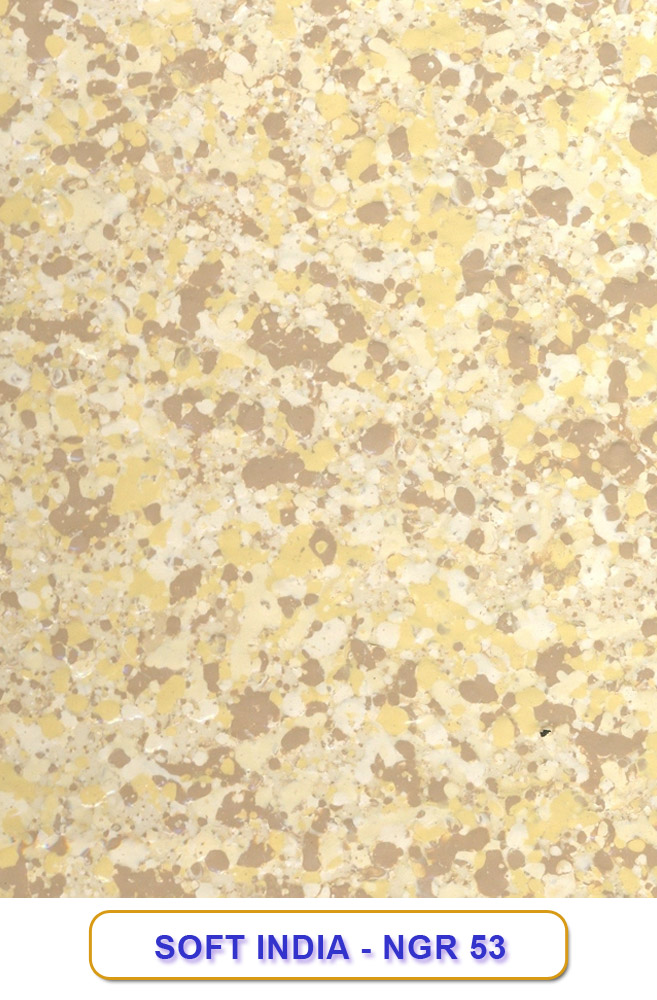

SOFT INDIA- NGR 53		VERDE- NGR 55
